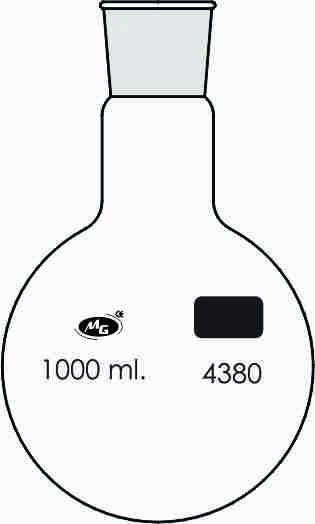

Flask Round Bottom, Single Neck with Interchangeable Joint
Uniform wall thickness distribution makes these Flasks ideal for treating and withstanding the pressure requirements. Proper dimensions to ensure proper capacity is adhered to. Intenchangable joint,
If Ku need flask uri short & long height please mention separately.
Flasks with different joint sires also available..
Flasks of larger capacity also available.
ISO 1773
| Cat. No | Normal Capacity | Soket Size | Approx Overall Height |
|---|---|---|---|
| 050.MD.01 | 5 | 14/23 | 60 |
| 050.MD.02 | 10 | 14/23 | 65 |
| 050.MD.03 | 23 | 14/23 | 75 |
| 050.MD.04 | 25 | 19/26 | 77 |
| 050.MD.05 | 50 | 14/23 | 95 |
| 050.MD.06 | 50 | 19/26 | 95 |
| 050.MD.07 | 50 | 24/29 | 95 |
| 050.MD.08 | 100 | 14/23 | 120 |
| 050.MD.09 | 100 | 19/26 | 120 |
| 050.MD.10 | 100 | 24/29 | 95 |
| 050.MD.11 | 100 | 29/32 | 120 |
| 050.MD.12 | 250 | 14/23 | 140 |
| 050.MD.13 | 10 | 14/23 | 65 |
| 050.MD.14 | 250 | 24/29 | 140 |
| 050.MD.15 | 250 | 24/29 | 140 |
| 050.MD.16 | 250 | 34/35 | 140 |
| 050.MD.17 | 500 | 19/26 | 170 |
| 050.MD.18 | 500 | 24/29 | 170 |
| 050.MD.19 | 500 | 29/32 | 170 |
| 050.MD.20 | 500 | 34/35 | 170 |
| 050.MD.21 | 1000 | 19/26 | 210 |
| 050.MD.22 | 10 | 14/23 | 65 |
| 050.MD.23 | 1000 | 29/32 | 210 |
| 050.MD.24 | 10 | 14/23 | 65 |
| 050.MD.25 | 1000 | 34/35 | 210 |
| 050.MD.26 | 2000 | 29/32 | 240 |
| 050.MD.27 | 2000 | 34/35 | 240 |
